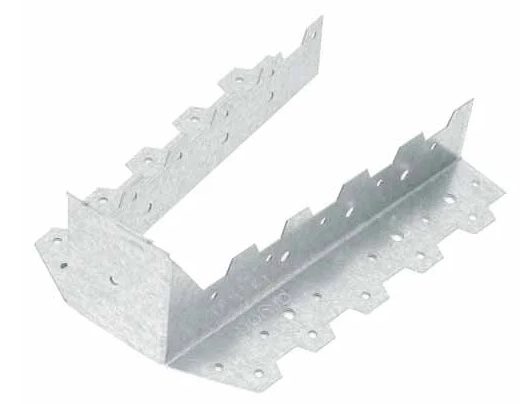

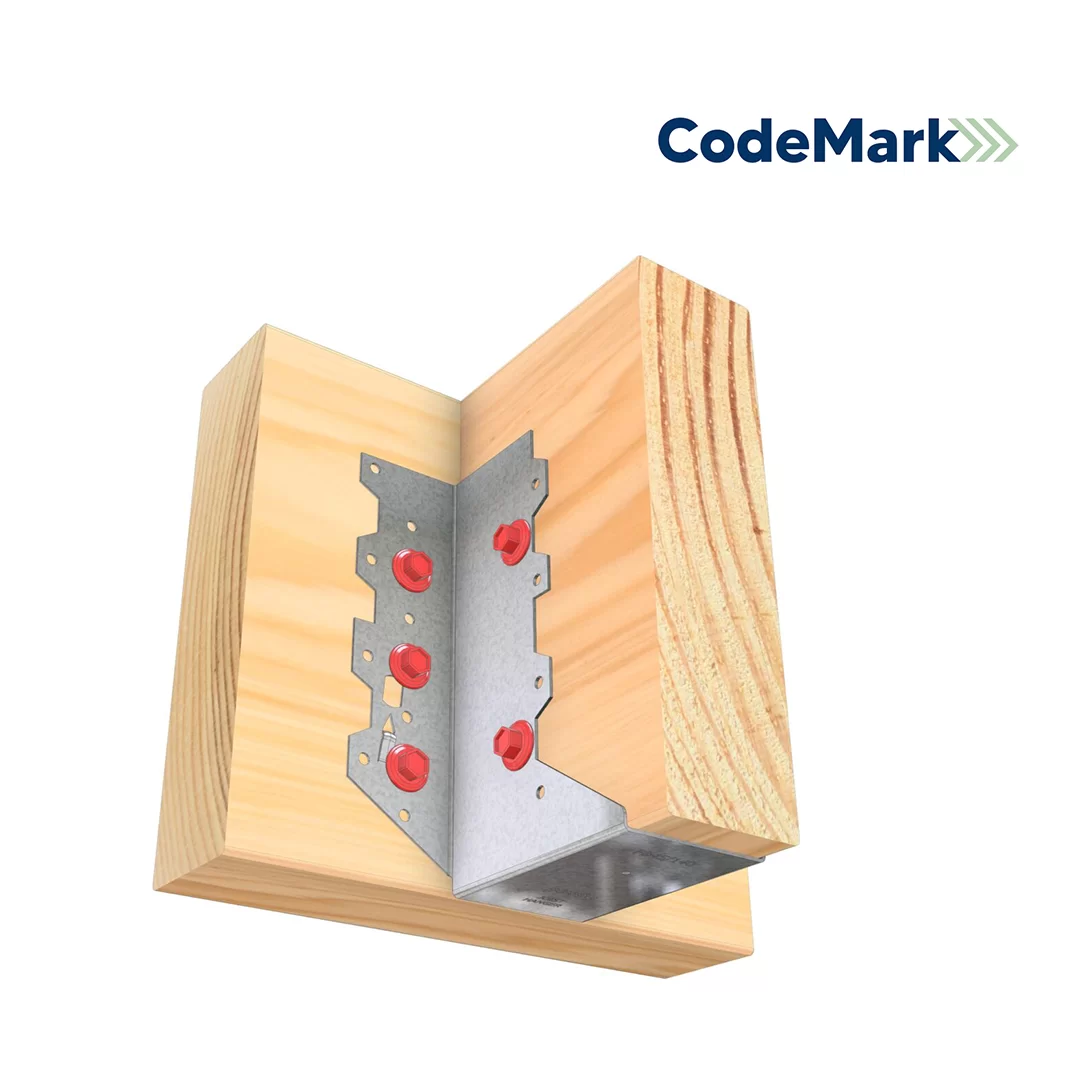

Simple means of connecting two members at 90° that provides resistance to gravity and uplift loads

USES

Pryda Framing Brackets are suitable for fixing joist to joist, joist to beam, truss to truss, rafter to purlin, and hangers to joists.

FEATURES

SIMPLE: Can be installed without needing to create special housings or high-skill timber joints.
FAST: Can be fastened with Pryda TCS12-35/1K screws.
DURABLE: 1.0mm thick galvanised steel engineered to resist gravity loads and wind uplift loads as well as lateral rotation. Some products are also available in Stainless Steel 304.

APPLICATION

For application and design capacity information, refer to the Framing Brackets Data Sheet.
